Product Spec. Summary
SONIX SNM9S5XXXC3000A Decoder SoC:
■ Voltage operation range of sensor iC: 2.4 *3.6V
■ OlD decoder: Support dot pattern format:
■ Bi-direction communication vla 2-wire interface
•Output Optical index via two wire interface.
■ Three Operation Modes
• Normal Mode
• Suspend Mode
-During Suspend Mode, the decoder SoC will keep all 2-wire commands and settings controlled by
backend chipset, and will continue to work normally with the same settings after back to Normal Mode.
-Back to Normal Mode: 2-wire SCK 2us "HGH" pulse.
* Configuration Mode
-Once 3.3V (VCC33) is provided, decoder soC will stay in configuration mode initially.
-When be set to Normal Mode, an internal chip reset sets all settings to default values and starting
work normally.
-Enter Normal Mode: 2 wire SCk 20ms "HIGH' pulse (at least)

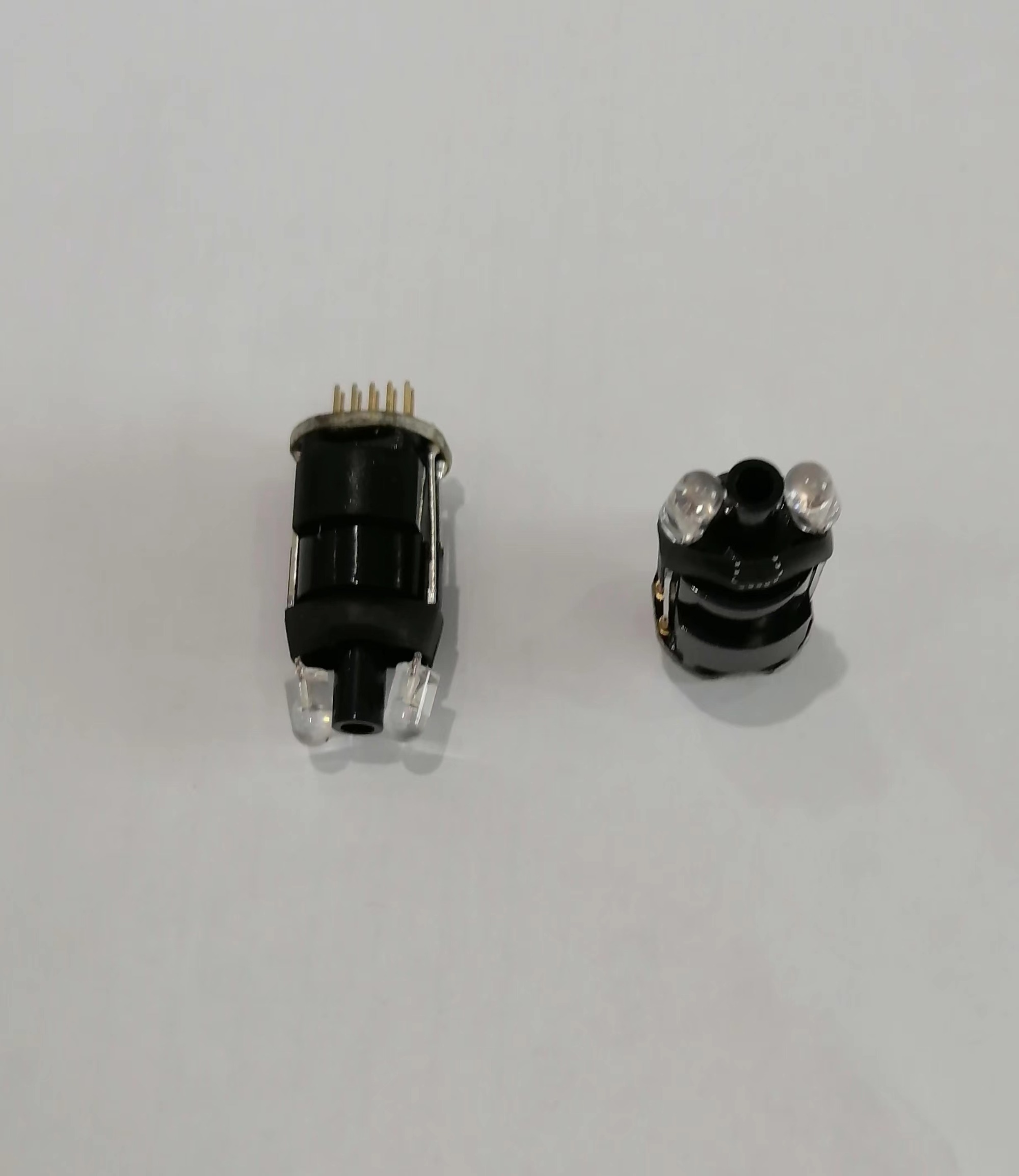

■ Output Pins of Module
• +VCC33
• GND
• 2 wire interface : SCk
• 2 wire interface : SDlO
• F source (Default : Ground)
• EEPRoM Serial Clock
• EEPROM Serial Data
